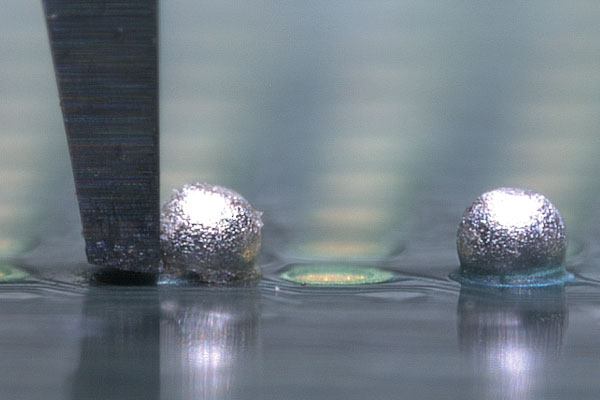

Gold/copper ball shear #
The gold ball bond measurement unit can be fitted to any of our machines. Precise alignment to the bond is simple and stress free using the standard EZ controls. Precise shear height control and force measurement ensure accurate data with minimum distribution. Password protected flexibility of the programmable test parameters allow you to be in control.
An optional camera system is available for visually inspecting the test result. Xyztec complies with all relevant international standards such as ASTM, MIL.
How to: Gold ball shear #
Standards #
- JEDEC JESD22-B116
- ASTM F1269 for wire bond ball shear
Test features #
- Sensor accuracy ±0.075%
- Shear height accuracy ±1µm
- Click here for solder ball shear
Failure modes #
Failure in IMC #
- Bond strength known
- Acceptability depends on the strength
Failure in bulk material #
- Bond strength not known
- Acceptability depends on the strength
- Bond strength good or bond test bad
Pad crater #
- Pad strength known
- Acceptability depends on the strength
- Possibly bonder process problem
Bond failure #
- Bond strength known
- Acceptability depends on the strength
- Probably very weak bond
Failure in bulk material with inconsistent shear height #
- Bond strength not known
- Bad test, poor sample clamping, or bond tester problem
