Gold/copper ball shear

Gold/copper ball shear #

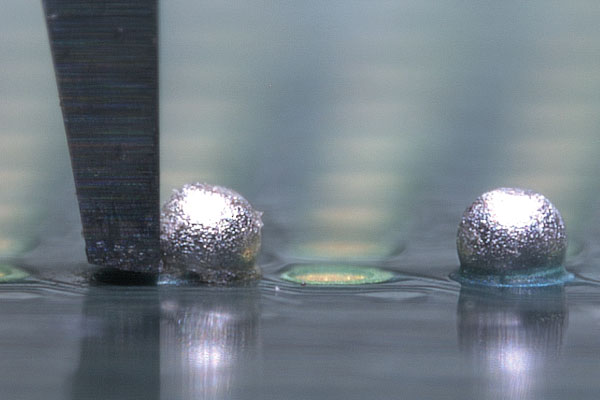

The xyztec Gold Ball bond measurement unit can be fitted to any of our machines. Precise alignment to the bond is simple and stress free using the standard EZ controls. Precise shear height control and force measurement ensure accurate data with minimum distribution. Password protected flexibility of the programmable test parameters allow you to be in control.

An optional camera system is available for visually inspecting the test result. Xyztec complies with all relevant international standards such as ASTM, MIL.

How to: Gold ball shear #

Standards #

• JEDEC JESD22-B116
• ASTM F1269 for wire bond ball shear

Test features #

• Sensor accuracy ±0.075%
• Shear height accuracy ±1µm
• Click here for solder ball shear
