70-75% of our customers are looking for custom items. As the technology leader, we take on the latest challenges in bond testing and anticipate future market demands. Besides a wide range of standard tools and work holders, we design custom bond testing solutions to fulfill all test requirements.
Whether you require custom tools or more complex solutions like work holders or complete bond testing systems, at xyztec, our team has the experience and expertise to create the unique solution you need:
Shear tool (back relief)
Deep access tool (extra long)
Self alignment shear tool
Scratch tool (diamond tip)
Cavity shear tool
Ribbon pull tool
Cut tool (exchangeable knife)
Wedge pick up tool (tweezer tip)
Heavy load tool
Toothed tweezer tips
Wide toothed tweezer tips
Stud pull tweezer tips (glass stud)

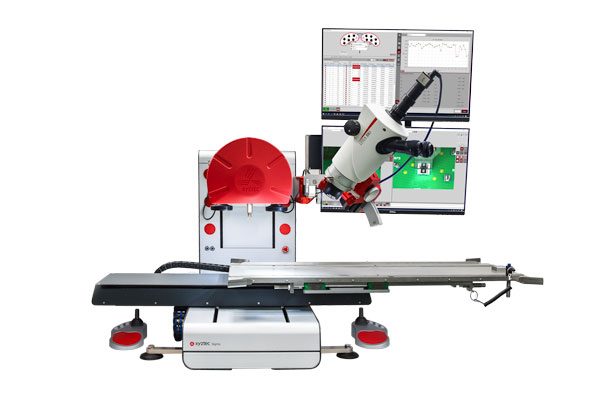

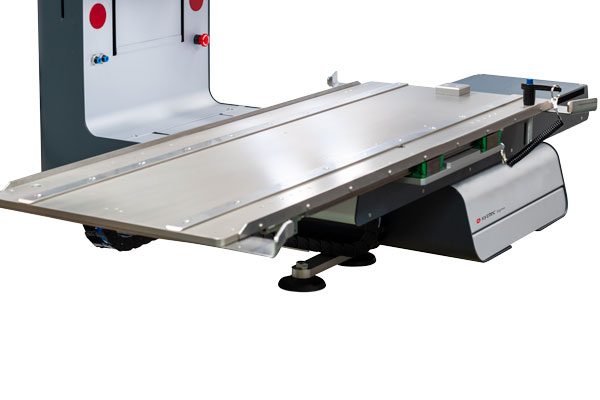

Test entire battery modules without the need to manually rotate the module mid-testing. For this custom solution, we use a Sigma W12 bondtester for 300 mm wafers as a baseline and add a custom sliding work holder that allows fully automatic testing across the entire battery module.
The custom pneumatic stage extension increases the testable reach in X beyond the standard 600 mm to a maximum of 900 mm. By extending the machine body and mounting the RMU farther from the rest of the system, the Y-axis is now 370 mm, a 120% increase relative to a standard Sigma.
This work holder solution is just one example of our ability to generate custom solutions to meet unique customer requirements. We offer bond test systems for all battery pack sizes, including bench-top and floor model solutions to test heavy applications or battery packs.

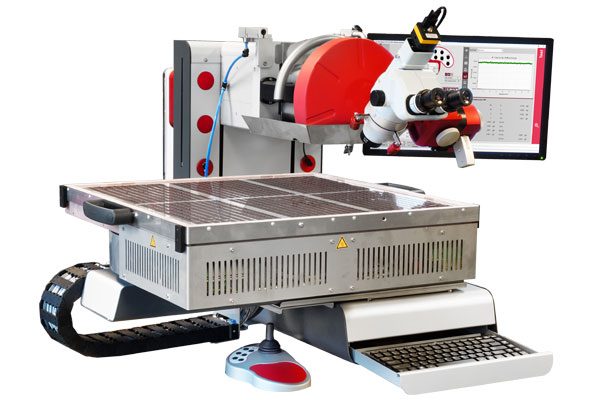

Warm up your samples to high temperatures to test epoxide or soldered interconnections. Especially useful for shear testing on large rectangular glass carriers.
The (hot) panels are easy to handle by using the sample carrier and cooling down rack. Triple heat shielding around the test head makes sure that the prolonged high temperatures do not affect the inner working of the Sigma bond tester.
An extremely flat aluminum table delivers a perfect vacuum. With 27 heater elements in 7 different control groups, the Sigma quickly warms up its table and the sample with high accuracy and consistency.

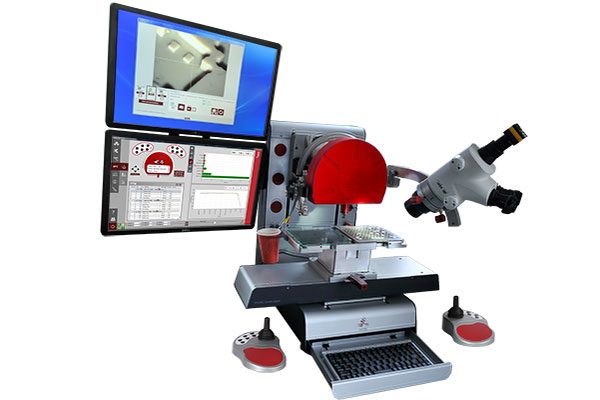

With a Sigma combined with micro dispenser and tweezer you can perform a very reproducible destructive stud pull test on 3D MID (Molded Interconnect Device) such as (glass) surface coatings.
The micro dispenser drops small amounts of glue (microliter amounts) very accurately. It makes an adhesive connection with the carrier (or test object) by using a stronger glue than the bond. A special UV light on the machine cures the glue within seconds.

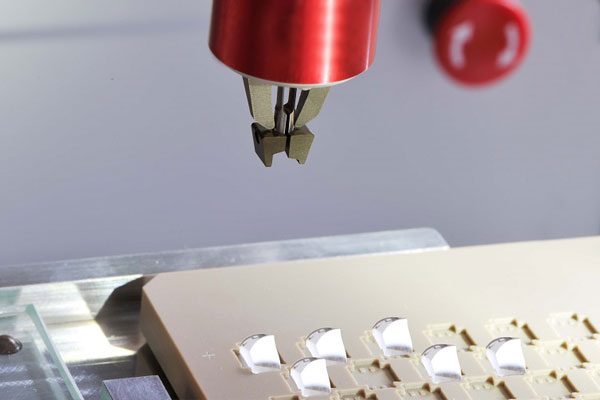

Tweezers automatically take glass studs from a magazine using exclusive tipsand place them with a predefined pressure on the surface with the glue. The push force is just sufficient to get a strong connection, without forming any menisci.
The tweezer holds the stud during the test. Automation ensures that the tweezer applies no unwanted load to the stud or influences the measurement.

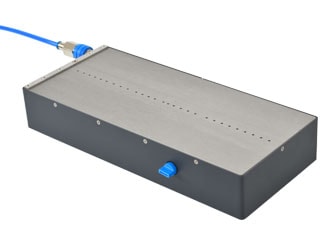

Work holder XWV690068
Work holder XWC690428

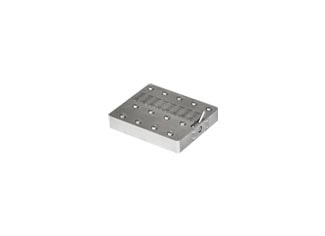

Work holder XWU690079
Work holder XWC690432

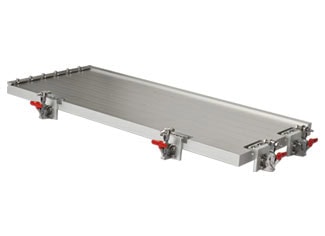

Work holder XWC690431-battery

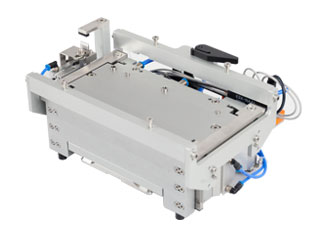

Work holder for lead frames
