Push tests

Test types

Downwards (Z-axis)

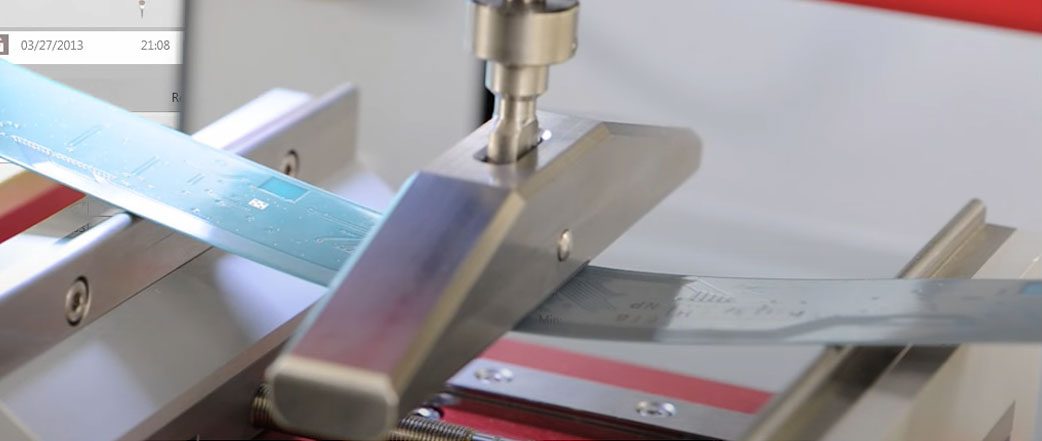

A push (reverse pull) test is a method where the principal goal is to apply a downward load onto a sample to measure response as a function of applied downward load. This downward load may be destructive (to part failure) or non-destructive (to force threshold) as needed. For non-destructive tests, force may be applied once or cyclically to evaluate part performance over repeated loading cycles. Most common example of push test: 3-point and 4-point bending and pin test applications.

Applications

Surface Mount Technology (SMT)
Wafers (thin, ultra thin)
Ultra-thin dies
Substrates
Low Temperature Co-fired Ceramic (LTCC)

Tools

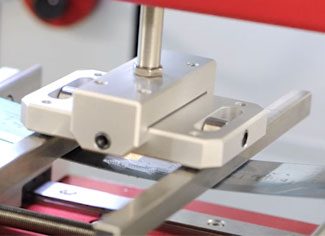

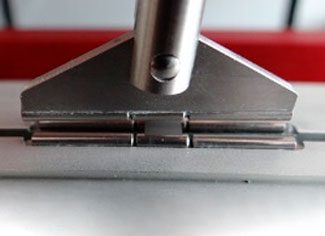

Bending apparatus
Customized tools

Standards

ASTM C1499
EIA-364-09C
IPC-TM-650
JEDEC 9702
MIL-STD-1344A
SEMI G86-0303
SEMI G86-1014

Push test types

Click the play button to see a push test type video or read more by clicking on the link below.

Ball on ring

Connector

Keypad
