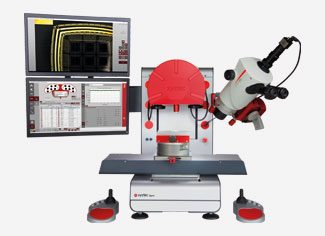

Sigma lite is a low cost of ownership bond tester that grows with your company. It gives you a low-cost entry point without sacrificing performance to meet future demands.
For more advanced and automatic bond testing, the Sigma Lite is upgradable to a full Sigma bondtester, which comes with higher specifications in:
Sigma is the most advanced bond tester. It is modular by design and comes with game-changing automation capabilities.
The Revolving Measurement Unit (RMU) houses up to 6 sensors that enables continuous testing. The software includes vision and deep learning technology to eliminate human errors.
You can also equip the Sigma with single heads for shear (SMU) or for Push and Pull (PMU). All test heads come with the same specifications as the RMU in terms of maximum forces and accuracy. There is no need to readjust the microscope when you do switch cartridges. They all share the same test point.
Sigma is the most advanced bond tester. It is modular by design and comes with game-changing automation capabilities.
The Revolving Measurement Unit (RMU) houses up to 6 sensors that enables continuous testing. The software includes vision and deep learning technology to eliminate human errors.
You can also equip the Sigma with single heads for shear (SMU) or for Push and Pull (PMU). All test heads come with the same specifications as the RMU in terms of maximum forces and accuracy. There is no need to readjust the microscope when you do switch cartridges. They all share the same test point.
Eliminate human error and save production costs.
Robotic handling ensures safe load and unload of applications and avoids handling error and damage. We offer handlers for:
The open Sigma software enables easy programming of total automation steps, positions, and commands. The automation editor employs camera visualization and intelligent wizards.
See the unseen with up to 3 live camera options. Bring out the features of interest with images or videos using high-resolution cameras, flexible LED illumination, and fantastic image processing options.
Recognition of components and fine pitch wires that are swept out of position due to process tolerances or part handling.
A Sigma offers 2 alternatives to make grading more efficient and consistent:
Improve data processing using automatic export and SECS/GEM for tracking and control.
The Revolving Measurement Unit (RMU) houses up to 6 flexible sensors that are configurable with various pull, peel, push, or shear tools. This enables continuous testing up to 200 kgf.
The Revolving Measurement Unit (RMU) houses up to 6 flexible sensors that are configurable with various pull, peel, push, or shear tools. This enables continuous testing up to 200 kgf.
The nano control shear sensor has a unique drive with a closed control loop within the shear sensor body. It improves the accuracy and stability of the shear height with a precision of 200 nm when testing critical applications such as wafer-level, coating, and lead frames.
STAGES | SIGMA LITE |
---|---|
X-stage (mm) | 168 |
Y-stage (mm) | 168 |
Z-stage (mm) | 168 |
Axis speed (mm/s) | 5 |
Resolution linear encoders (backlash free drives) (nm) | 30 |
Digital temperature correction | |
ACCURACY | |
Accuracy (%) | 0.2 |
ADC resolution (bit) | 16 |
Sampling frequency (kHz) | 2 |
Shear height (step back) accuracy ±1 μm | |
Programmable landing force down to 5 gf | |
MECHANICAL | |
Footprint X (mm) | 620 |
Footprint Y (mm) | 558 |
Height (mm) | 608 |
Weight (± kg) | 80 |
Please contact us for more information and options for your factory. Specifications are subject to change without prior notice.
