Easy positioning and programming are possible with up to 5 cameras on a 360° rotational measurement head. These head-mounted cameras come without tool-to-camera offset.
These bondtesters operate at the fastest speeds in the industry, and as such, demand the most attention to safe operation.

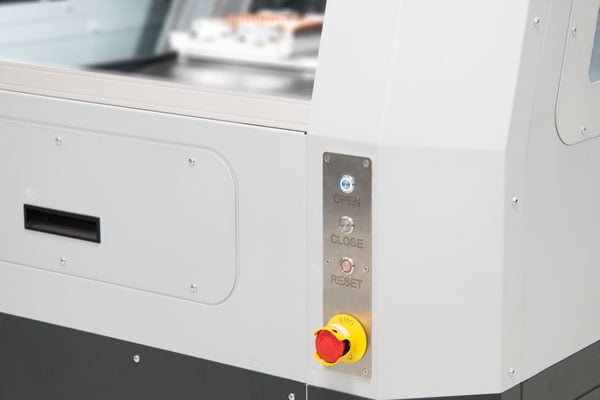

The safety cabinet automatically locks during an automatic test to protect the samples and the operator from moving parts. You can easily control the system by its mobile user interface with 2 monitors and an emergency switch. The safety cabinet is SEMI S2 and fulfills the standards for safety and ergonomics.
The safety cabinet has a stack light on top to allow you to work efficiently and to manage multiple systems simultaneously. It is fully programmable, and it gives you visual and audible feedback when the system requires an operator.
Test the largest battery modules in the industry. The large working area makes flexible positioning of multiple work holders at the same time possible.
We develop custom work holder solutions for your batteries to provide secure clamping, repeatable positioning, and stability during any bond test.
| STAGES | SIGMA HF |
|---|---|
| X-stage (mm) | 500 |
| Y-stage (mm) | 500 |
| Z-stage (mm) | 200 |
| Axis speed (mm/s) | 500 |
| Resolution linear encoders (backlash free drives) (nm) | 10 |
| Digital temperature correction |  |
| ACCURACY | |
| Accuracy (%) | 1 |
| ADC resolution (bit) | 24 |
| Sampling frequency (kHz) | 10 |
| Shear height (step back) accuracy ±1 μm | |
| Programmable landing force down to 5 gf |  |
| MECHANICAL | |
| Footprint X (mm) | 1200 |
| Footprint Y (mm) | 1200 |
| Height (mm) | 2500 |
| Weight (± kg) | 1350 |
Please contact us for more information and options for your factory. Specifications are subject to change without prior notice.
Standard
Optional
Not available
