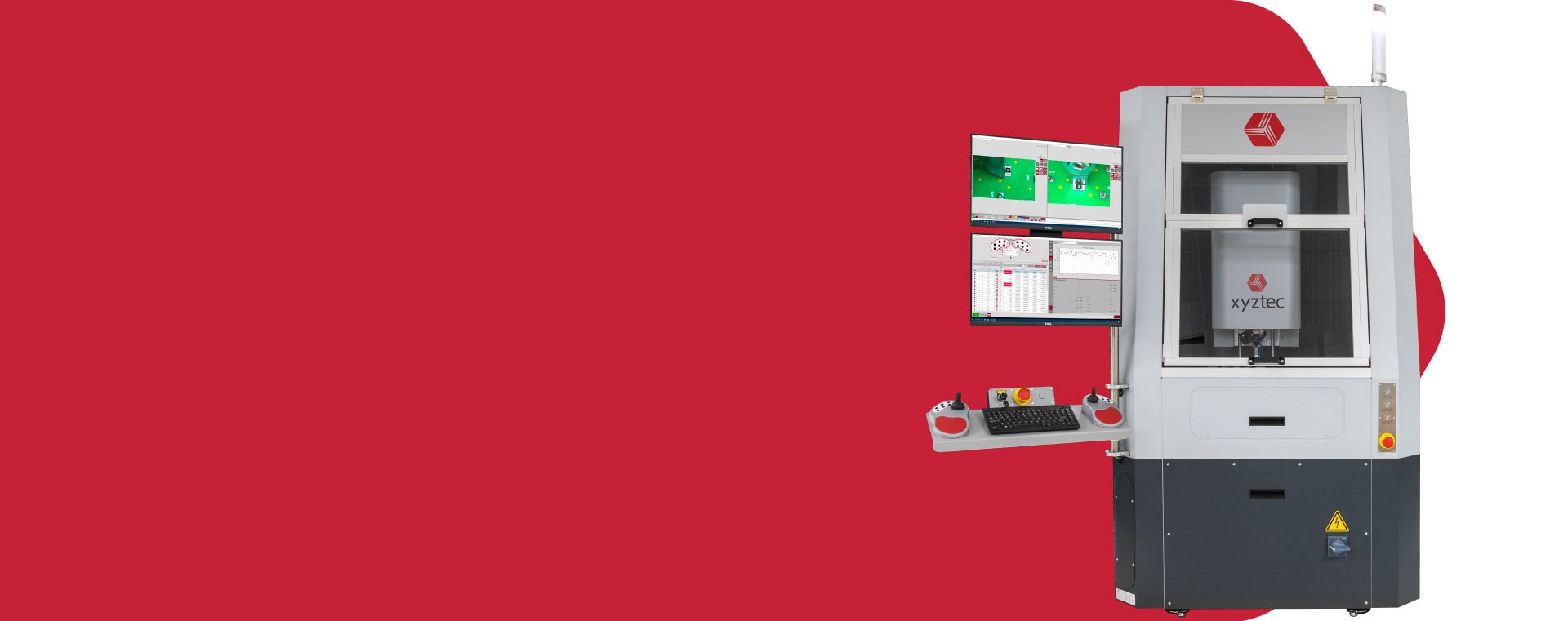

Sigma HF/L

High force
Large area

Sigma HF/L
Sigma HF/L

Sigma HF/L

High force Large area

World’s most powerful bond testers

  • For high force and large area
  • Typically for IGBT, power modules and batteries up to 1000 kgf
  • High axis speed
  • Deep access up to 80 mm
  • SEMI S2 safety cabinet with visual feedback
  • Flexible positioning of multiple work holders
High force test head

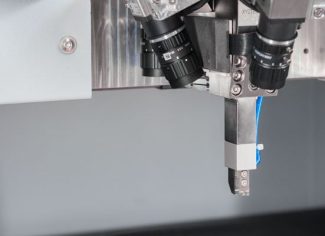

360° Head design​

Easy positioning and programming are possible with up to 5 cameras on a 360° rotational measurement head. These head-mounted cameras come without tool-to-camera offset.

Sigma-HF-L-Safety-Cabinet

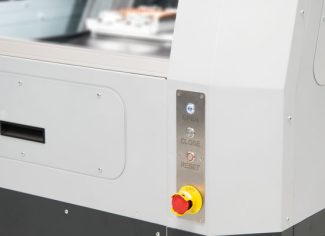

Safety cabinet

These bond testers operate at the fastest speeds in the industry, and as such, demand the most attention to safe operation.

The safety cabinet automatically locks during an automatic test to protect the samples and the operator from moving parts. You can easily control the system by its mobile user interface with 2 monitors and an emergency switch. The safety cabinet is SEMI S2 and fulfills the standards for safety and ergonomics.

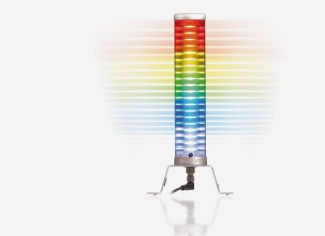

Stacked light Balluff

Visual feedback

The safety cabinet has a stack light on top to allow you to work efficiently and to manage multiple systems simultaneously. It is fully programmable, and it gives you visual and audible feedback when the system requires an operator.

Flexible-positioning-of-multiple-work-holders

Flexible positioning

With a Sigma L, you are capable of testing the largest battery modules in the industry. The large working area makes flexible positioning of multiple work holders at the same time possible.

We develop custom work holder solutions for your batteries to provide secure clamping, repeatable positioning, and stability during any bond test.

Options

  • Extra-large stage for even larger test volume
  • Revolving Measurement Unit (RMU)
  • Customization
Sigma-HF-L-with-extra-large-stage

Full automation

Eliminate human error and save production costs.

  • Robotic handlers
  • Easy programming
  • Smart vision cameras
  • Tool alignment
  • Fiducial recognition
  • Wire detection
  • Grading run
  • Auto grading
  • Image measurement (AOI)
  • Data communication

Handlers

Robotic handling ensures safe load and unload of applications and avoids handling error and damage. We offer handlers for:

  • Wafers (EFEM)
  • Waffle trays
  • Magazines

Easy programming

The open Sigma software enables easy programming of total automation steps, positions, and commands. The automation editor employs camera visualization and intelligent wizards.

Smart vision cameras

See the unseen with up to 3 live camera options. Bring out the features of interest with images or videos using high-resolution cameras, flexible LED illumination, and fantastic image processing options.

Tool alignment

Precise tool alignment is essential to test the correct bonds correctly. We offer several solutions for perfect alignment:
  • Self-aligning shear tool
  • Deep access
  • Revolving Measurement Unit
  • Concentricity correction

Fiducial recognition

Define recognizable shapes, patterns, or marks as a global or local reference for positioning and automatic tool alignment.

Wire dection

Recognition of components and fine pitch wires that are swept out of position due to process tolerances or part handling.

Grading run

A Sigma offers 2 alternatives to make grading more efficient and consistent:

  • The operator does all the gradings in one step after a sequence of tests, using the microscope or an offset camera.
  • A Sigma can take it one step further and make automatic determinations of the failure modes (auto grading).

Auto grading

Automatically grade the failure modes of the test result images with grading assistance. Optical inspection calculates the area of bulk material remaining as a percentage of the whole.

Image measurement (AOI)

Detailed optical inspection helps you to perform image measurements or to identify the failure modes of the captured test results. For more advanced image processing, filtering, segmentation, and detection of shapes, you can use Automated Optical Inspection (AOI).

Data export

Improve data processing using automatic export and SECS/GEM for tracking and control.

RMU

No more cartridge
exchanges

The Revolving Measurement Unit (RMU) houses up to 6 flexible sensors that are configurable with various pull, peel, push, or shear tools. This enables continuous testing up to 200 kgf.

RMU

No more cartridge
exchanges

The Revolving Measurement Unit (RMU) houses up to 6 flexible sensors that are configurable with various pull, peel, push, or shear tools. This enables continuous testing up to 200 kgf.

Control your alignment

Multiple ways to test, requires for different test tools. Besides a wide range of standard pull, peel, push or shear tools we design custom solutions to fulfill all test requirements.

Tweezers

You can control the gripping force and the opening and closing position. There is a choice of 3 types of tweezers:
  • Electric (USB)
  • Mechanical
  • Pneumatic
Tools

Control your alignment

Multiple ways to test, requires for different test tools. Besides a wide range of standard pull, peel, push or shear tools we design custom solutions to fulfill all test requirements.
Tools-Top
Tools-Bottom

Tweezers

You can control the gripping force and the opening and closing position. There is a choice of 3 types of tweezers:
  • Electric (USB)
  • Mechanical
  • Pneumatic
Tools-Bottom
Tools
Your sample fits, too!

Your sample fits, too!

  • Quick release work holders
  • Maximize your throughput
  • Accurate alignment
  • Wide selection and customized clamping solutions
  • High axis speed, direct-drive motor, linear encoders
  • Secure lock maintains reproducible positioning
Your sample fits, too!
Your sample fits, too!

Your sample fits, too!

  • Quick release work holders
  • Maximize your throughput
  • Accurate alignment
  • Wide selection and customized clamping solutions
  • High axis speed, direct-drive motor, linear encoders
  • Secure lock maintains reproducable positioning
Love Sigma Bond Tester

A pleasure to set up

  • Easy sample access
  • Flexible LED lighting options
  • Designed with the operators in mind
  • Adjustable microscope
  • No stress working conditions

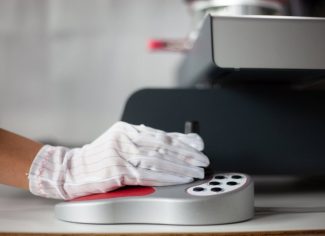

Peddle Sigma

Easy to use for everyone

  • Flexible on-board Statistical Process Control (SPC) analysis
  • Unique form features for SPC management
  • Software has Easy and Expert modes
  • Control chart and real-time force graphs
  • Flexible export and SECS/GEM

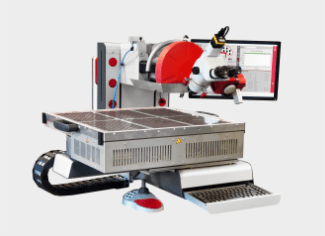

Modular by design

Modular by design

  • Customized tools and work holders
  • Operator free loading options
  • Powerful camera options
Love Sigma Bond Tester

A pleasure to
set up

  • Easy sample access
  • Flexible LED lighting options
  • Designed with the operators in mind
  • Adjustable microscope
  • No stress working conditions

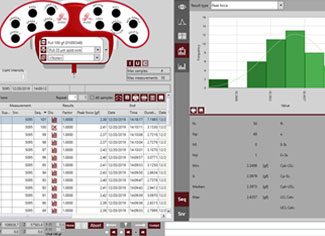

SPC-screen

Easy to use
for everyone

  • Flexible on-board Statistical Process Control (SPC) analysis
  • Unique form features for SPC management
  • Software has Easy and Expert modes
  • Control chart and real-time force graphs
  • Flexible export and SECS/GEM
Modular by design

Modular by
design

  • Customized tools and work holders
  • Operator free loading options
  • Powerful camera options

Specifications Sigma HF/L

STAGESSIGMA HFSIGMA L
X-stage (mm)500500
Y-stage (mm)500500
Z-stage (mm)200200
Axis speed (mm/s)500500
Resolution linear encoders (backlash free drives) (nm)1010
Digital temperature correctionStandardStandard
ACCURACY
Accuracy (%)10.075
ADC resolution (bit)2424
Sampling frequency (kHz)1010
Shear height (step back) accuracy ±1 μmStandardStandard
Programmable landing force down to 5 gfOptionalStandard
MECHANICAL
Footprint X (mm)12001200
Footprint Y (mm)12001200
Height (mm)25002500
Weight (± kg)13501350

Please contact us for more information and options for your factory. Specifications are subject to change without prior notice.

   Standard
   Optional
   Not available
