As forerunners in bond testing, we aim to spread knowledge about bond testing in the industry. The Cold Bump Pull (CBP) test method is the ultimate solution for solder ball testing. That is why we have given our well-known Cold Bump Pull guide an update and a new look. Dig into this new version of “How to Cold Bump Pull” and learn about how to perform an optimal pull test on solder balls using tweezers.

Abstract

This extensive how-to consists of 12 paragraphs. This manual focuses on solder ball testing, but the principles apply equally to most bump testing. We touch on topics like what type of balls to test, tool design, and tool alignment. But most important; How to set up a Cold Bump Pull test?

At last, we explain some test method settings and share the most common failure modes for solder ball testing.

Read more



What is Cold Bump Pull?

The CBP test method is the ultimate solution for solder ball testing. The principles apply to bump testing on any ball.

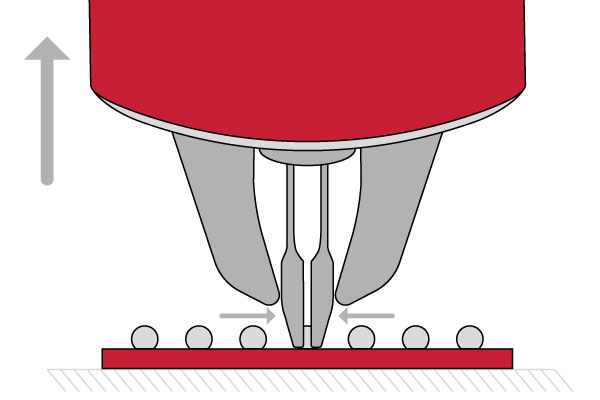

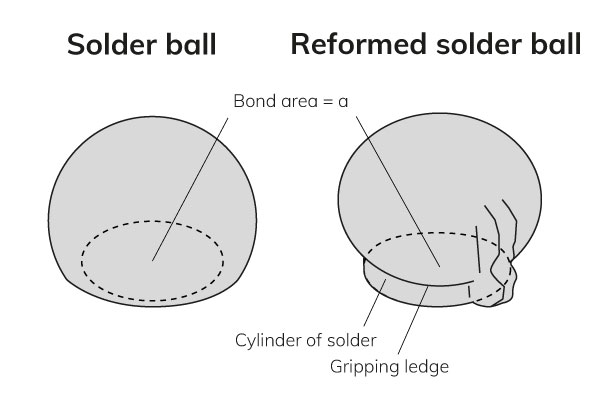

CBP stands for Cold Bump Pull or Cold Ball Pull. To pull the ball it is necessary to reform the ball in a “mushroom” shape with a tweezer. Tweezers have special gripping jaws with cavities that reform the ball when the tweezers close. The jaws of the tweezers provide the pull grip. The tweezer applies an upward force and effectively pulls the ball away from the substrate, moving the Z-stage until the bond breaks or a pre-defined force threshold is achieved.

Do not worry about reforming the ball. Reforming is due to the load on the tool.  It is better to get a higher test force by “over gripping” the ball so that the reforming cuts over the bond than “under gripping” the ball and risking unrealistic failure modes in the bond. Remember: We always seek to test the bond of interest in a way that generates the failure mode of interest, or the highest force.
