Sigma

Advanced bond tester

Proven Sigma performance

Sigma is the most advanced bond tester. It comes with game-changing automation capabilities and high specifications in:

Sigma

Advanced bond tester

Proven Sigma performance

Sigma is the most advanced bond tester. It comes with game-changing automation capabilities and high specifications in:

  • Sensor accuracy and resolution
  • Large X stage
  • Superior axis speed
  • Cameras and illumination
  • Future proof and modular design

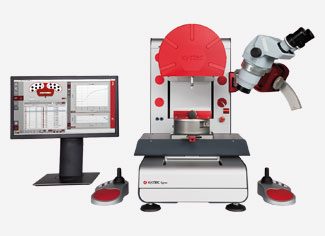

Sigma Lite low cost bond tester

Sigma Lite

The Sigma Lite is a low cost of ownership bondtester that grows with your company. It offers a low-cost entry point by giving up some of the above Sigma features. It is possible to upgrade to a full Sigma later.

Sigma automation

Automation

A Sigma is modular by design and comes with full automation capabilities. The Revolving Measurement Unit (RMU) houses up to 6 sensors that enables continuous testing. The software includes vision and deep learning technology to eliminate human errors.

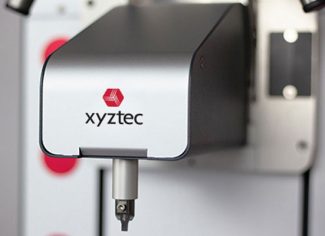

Single measurement unit

Single test heads

You can also equip the Sigma with single heads for shear (SMU) or for Push and Pull (PMU). All test heads come with the same specifications as the RMU in terms of maximum forces and accuracy. There is no need to readjust the microscope when you do switch cartridges. They all share the same test point.

Sigma Lite low cost bond tester

Sigma Lite

The Sigma Lite is a low cost of ownership bond tester that grows with your company. It offers a low-cost entry point by giving up some of the above Sigma features. It is possible to upgrade to a full Sigma later.

Sigma automation

Automation

A Sigma is modular by design and comes with full automation capabilities. The Revolving Measurement Unit (RMU) houses up to 6 sensors that enables continuous testing. The software includes vision and deep learning technology to eliminate human errors.

Single measurement unit

Single test heads

You can also equip the Sigma with single heads for shear (SMU) or for Push and Pull (PMU). All test heads come with the same specifications as the RMU in terms of maximum forces and accuracy. There is no need to readjust the microscope when you do switch cartridges. They all share the same test point.

Full automation

Eliminate human error and save production costs.

Handlers

Robotic handling ensures safe load and unload of applications and avoids handling error and damage. We offer handlers for:

  • Wafers (EFEM)
  • Waffle trays
  • Magazines

Easy programming

The open Sigma software enables easy programming of total automation steps, positions, and commands. The automation editor employs camera visualization and intelligent wizards.

Smart vision cameras

See the unseen with up to 3 live camera options. Bring out the features of interest with images or videos using high-resolution cameras, flexible LED illumination, and fantastic image processing options.

Tool alignment

Precise tool alignment is essential to test the correct bonds correctly. We offer several solutions for perfect alignment:
  • Self-aligning shear tool
  • Deep access
  • Revolving Measurement Unit
  • Concentricity correction

Fiducial recognition

Define recognizable shapes, patterns, or marks as a global or local reference for positioning and automatic tool alignment.

Wire dection

Recognition of components and fine pitch wires that are swept out of position due to process tolerances or part handling.

Grading run

A Sigma offers 2 alternatives to make grading more efficient and consistent:

  • The operator does all the gradings in one step after a sequence of tests, using the microscope or an offset camera.
  • A Sigma can take it one step further and make automatic determinations of the failure modes (auto grading).

Auto grading

Automatically grade the failure modes of the test result images with grading assistance. Optical inspection calculates the area of bulk material remaining as a percentage of the whole.

Image measurement (AOI)

Detailed optical inspection helps you to perform image measurements or to identify the failure modes of the captured test results. For more advanced image processing, filtering, segmentation, and detection of shapes, you can use Automated Optical Inspection (AOI).

Data export

Improve data processing using automatic export and SECS/GEM for tracking and control.

IMG 3865

No more cartridge
exchanges

The Revolving Measurement Unit (RMU) houses up to 6 flexible sensors that are configurable with various pull, peel, push, or shear tools. This enables continuous testing up to 200 kgf.

IMG 3865

No more cartridge
exchanges

The Revolving Measurement Unit (RMU) houses up to 6 flexible sensors that are configurable with various pull, peel, push, or shear tools. This enables continuous testing up to 200 kgf.

Nano-precise
shear height control

The nano control shear sensor has a unique drive with a closed control loop within the shear sensor body. It improves the accuracy and stability of the shear height with a precision of 200 nm when testing critical applications such as wafer-level, coating, and lead frames.

Nano control shear sensor SMU
Tools

Control your alignment

Multiple ways to test, requires for different test tools. Besides a wide range of standard pull, peel, push or shear tools we design custom solutions to fulfill all test requirements.

Tweezers

You can control the gripping force and the opening and closing position. There is a choice of 3 types of tweezers:
  • Electric (USB)
  • Mechanical
  • Pneumatic

Control your alignment

Multiple ways to test, requires for different test tools. Besides a wide range of standard pull, peel, push or shear tools we design custom solutions to fulfill all test requirements.
Tools Top
Tools Bottom

Tweezers

You can control the gripping force and the opening and closing position. There is a choice of 3 types of tweezers:
  • Electric (USB)
  • Mechanical
  • Pneumatic
Tools Bottom
Tools

Your sample fits, too!

  • Quick release work holders: Wide selection and customized clamping solutions
  • Maximize your throughput: High axis speed, direct-drive motor, linear encoders
  • Accurate alignment: Secure lock maintains reproducible positioning
Hands
Hands
Hands

Your sample fits, too!

  • Quick release work holders
  • Maximize your throughput
  • Accurate alignment
  • Wide selection and customized clamping solutions
  • High axis speed, direct-drive motor, linear encoders
  • Secure lock maintains reproducable positioning
Machine 2
sigma nadine@3x Grey

A pleasure to set up

  • Easy sample access
  • Flexible LED lighting options
  • Designed with the operators in mind
  • Adjustable microscope
  • No stress working conditions
img 3366@3x

Easy to use for everyone

  • Flexible on-board Statistical Process Control (SPC) analysis
  • Unique form features for SPC management
  • Software has Easy and Expert modes
  • Control chart and real-time force graphs
  • Flexible export and SECS/GEM
Machine
sigma w 12 heated stage v@3x Grey

Modular by design

  • Customized tools and work holders
  • Operator free loading options
  • Powerful camera options
Machine 2

A pleasure to
set up

  • Easy sample access
  • Flexible LED lighting options
  • Designed with the operators in mind
  • Adjustable microscope
  • No stress working conditions
SPC screen

Easy to use
for everyone

  • Flexible on-board Statistical Process Control (SPC) analysis
  • Unique form features for SPC management
  • Software has Easy and Expert modes
  • Control chart and real-time force graphs
  • Flexible export and SECS/GEM
Machine

Modular by
design

  • Customized tools and work holders
  • Operator free loading options
  • Powerful camera options

Specifications Sigma

STAGESSIGMA
X-stage (mm)370
Y-stage (mm)168
Z-stage (mm)168
Axis speed (mm/s)50
Resolution linear encoders (backlash free drives) (nm)30
Digital temperature correctionStandard
ACCURACY
Accuracy (%)0.075
ADC resolution (bit)24
Sampling frequency (kHz)10
Shear height (step back) accuracy ±1 μmStandard
Programmable landing force down to 5 gfStandard
MECHANICAL
Footprint X (mm)620
Footprint Y (mm)558
Height (mm)608
Weight (± kg)80

Please contact us for more information and options for your factory. Specifications are subject to change without prior notice.
